http://nightforceoptics.com/shv-5-20x56/
[TABLE="class: tablepress tablepress-id-40, width: 504"]
[TR="class: row-1 odd"]
[TH="class: column-1, bgcolor: red"]SPECIFICATIONS[/TH]
[TH="class: column-2, bgcolor: red"]5-20x56 SHV™[/TH]
[/TR]
[TR="class: row-2 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Focal Plane:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]Second[/TD]
[/TR]
[TR="class: row-3 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Magnification:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]5-20x[/TD]
[/TR]
[TR="class: row-4 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Objective Diameter:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]56mm[/TD]
[/TR]
[TR="class: row-5 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Exit Pupil Diameter:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]5x: 8.7mm
20x: 2.5mm[/TD]
[/TR]
[TR="class: row-6 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Field Of View:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]5x: 17.9ft
20x: 5.0ft
5x: 5.46m
20x: 1.52m
@100 Yards/100 Meters[/TD]
[/TR]
[TR="class: row-7 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Eye Relief:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]3.14in-3.54in (80-90mm)[/TD]
[/TR]
[TR="class: row-8 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Internal Adjustment Range:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]80MOA elev. 50MOA wind.
21.8Mil elev. 13.6Mil wind.[/TD]
[/TR]
[TR="class: row-9 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Click Value:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"].250MOA[/TD]
[/TR]
[TR="class: row-10 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Tube Diameter:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]30mm (1.18in)[/TD]
[/TR]
[TR="class: row-11 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Ocular Diameter:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]43mm[/TD]
[/TR]
[TR="class: row-12 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Mounting Length:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]6.5in/165mm[/TD]
[/TR]
[TR="class: row-13 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Weight:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]30.5oz/865grams (illuminated)
29.1oz/825grams (non-illuminated)[/TD]
[/TR]
[TR="class: row-14 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Overall Length:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]15.2in/386mm[/TD]
[/TR]
[TR="class: row-15 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Reticles:[/TD]

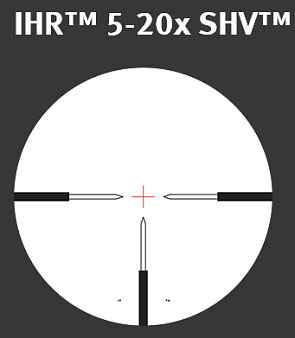

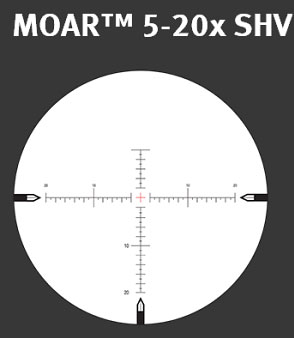

[TD="class: column-2, bgcolor: #B9B9B9"]MOAR™ (center illumination), IHR™[/TD]
[/TR]
[TR="class: row-16 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Illumination:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]Optional[/TD]
[/TR]
[TR="class: row-17 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]
[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]Standard[/TD]
[/TR]
[/TABLE]
[TR="class: row-1 odd"]
[TH="class: column-1, bgcolor: red"]SPECIFICATIONS[/TH]
[TH="class: column-2, bgcolor: red"]5-20x56 SHV™[/TH]
[/TR]
[TR="class: row-2 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Focal Plane:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]Second[/TD]
[/TR]
[TR="class: row-3 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Magnification:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]5-20x[/TD]
[/TR]
[TR="class: row-4 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Objective Diameter:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]56mm[/TD]
[/TR]
[TR="class: row-5 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Exit Pupil Diameter:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]5x: 8.7mm
20x: 2.5mm[/TD]
[/TR]
[TR="class: row-6 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Field Of View:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]5x: 17.9ft
20x: 5.0ft
5x: 5.46m
20x: 1.52m
@100 Yards/100 Meters[/TD]
[/TR]
[TR="class: row-7 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Eye Relief:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]3.14in-3.54in (80-90mm)[/TD]
[/TR]
[TR="class: row-8 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Internal Adjustment Range:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]80MOA elev. 50MOA wind.
21.8Mil elev. 13.6Mil wind.[/TD]
[/TR]
[TR="class: row-9 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Click Value:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"].250MOA[/TD]
[/TR]
[TR="class: row-10 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Tube Diameter:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]30mm (1.18in)[/TD]
[/TR]
[TR="class: row-11 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Ocular Diameter:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]43mm[/TD]
[/TR]
[TR="class: row-12 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Mounting Length:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]6.5in/165mm[/TD]
[/TR]
[TR="class: row-13 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Weight:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]30.5oz/865grams (illuminated)
29.1oz/825grams (non-illuminated)[/TD]
[/TR]
[TR="class: row-14 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Overall Length:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]15.2in/386mm[/TD]
[/TR]
[TR="class: row-15 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]Reticles:[/TD]
[TD="class: column-2, bgcolor: #B9B9B9"]MOAR™ (center illumination), IHR™[/TD]
[/TR]
[TR="class: row-16 even"]
[TD="class: column-1, bgcolor: #D7D1D1"]Illumination:[/TD]
[TD="class: column-2, bgcolor: #D7D1D1"]Optional[/TD]
[/TR]
[TR="class: row-17 odd"]
[TD="class: column-1, bgcolor: #B9B9B9"]
[TD="class: column-2, bgcolor: #B9B9B9"]Standard[/TD]
[/TR]
[/TABLE]
